Coleção de layout ISO de teclado mecânico personalizado sem fio Max QMK Keychron V3

SKU: V3M-D1-DE
€94,00

Type
Layout Version
Switches

O teclado mecânico sem fio Keychron V3 Max QMK/VIA permite que qualquer pessoa domine as teclas do teclado ou comandos macro através do VIA. As versões ISO incluem os layouts do Reino Unido, alemão, suíço, nórdico, francês e espanhol, vêm com teclas extras adequadas para dispositivos macOS e Windows e os usuários podem fazer hot-swap com qualquer interruptor mecânico MX com facilidade.

Teclas ABS: Luz de fundo brilhante
Teclas PBT: sem brilho


Nenhum código de desconto pode ser usado para V3 Max.

Por favor, deixe seu e-mail em "Notifique-me quando disponível" se o modelo do produto estiver fora de estoque.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Keychron V3 Max

ISO Layout Version

keychron-v3-max-iso-layout-1

The V3 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a classic TKL layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V3 Max is designed for a personalized experience and enhanced typing comfort.

keychron-v3-max-iso-layout-4
Customize Your V3 Max ISO

Choose the keycaps, switches, and more accessories for your V3 Max

OSA Profile Keycaps

To further leverage your typing experience, the V3 Max ISO version comes with our unique OSA profile(OEM profile with spherical angle) keycaps.

Shine-Through ABS Keycaps

k10-pro-iso-abs-new

ABS keycaps aim to provide a comfortable fingertip feel and a fantastic backlight shine-through effect.

Double-Shot PBT Keycaps

k-pro-iso-pbt-1

The double-shot PBT keycaps will provide excellent oil resistance, and prevent the legends from fading out.

V3 Max ISO Layout Versions

These versions include the UK, German, Swiss, Spanish, French, and Nordic layouts, all with extra keycaps suitable for Mac and Windows devices.

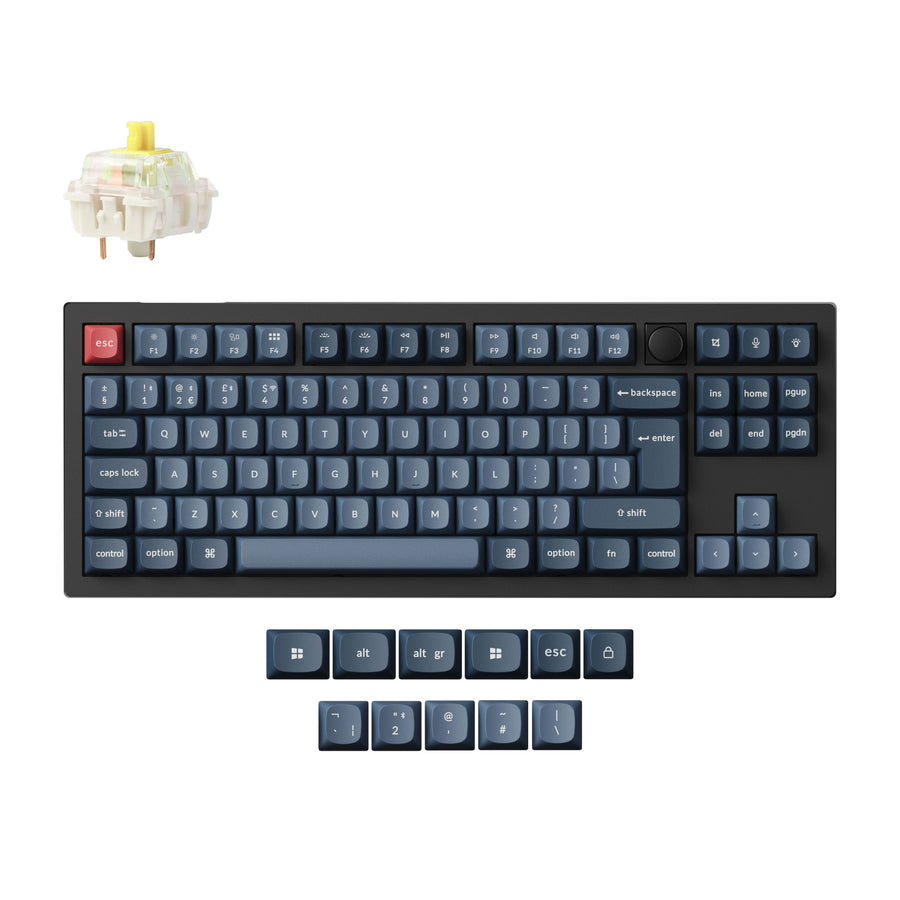

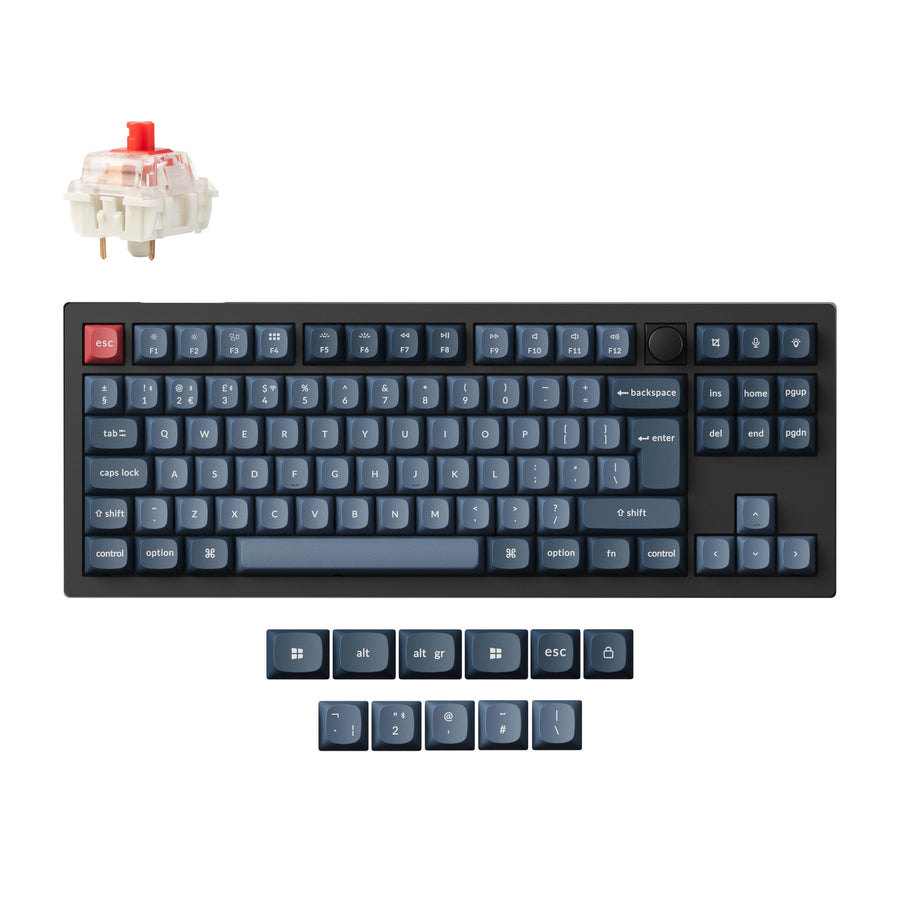

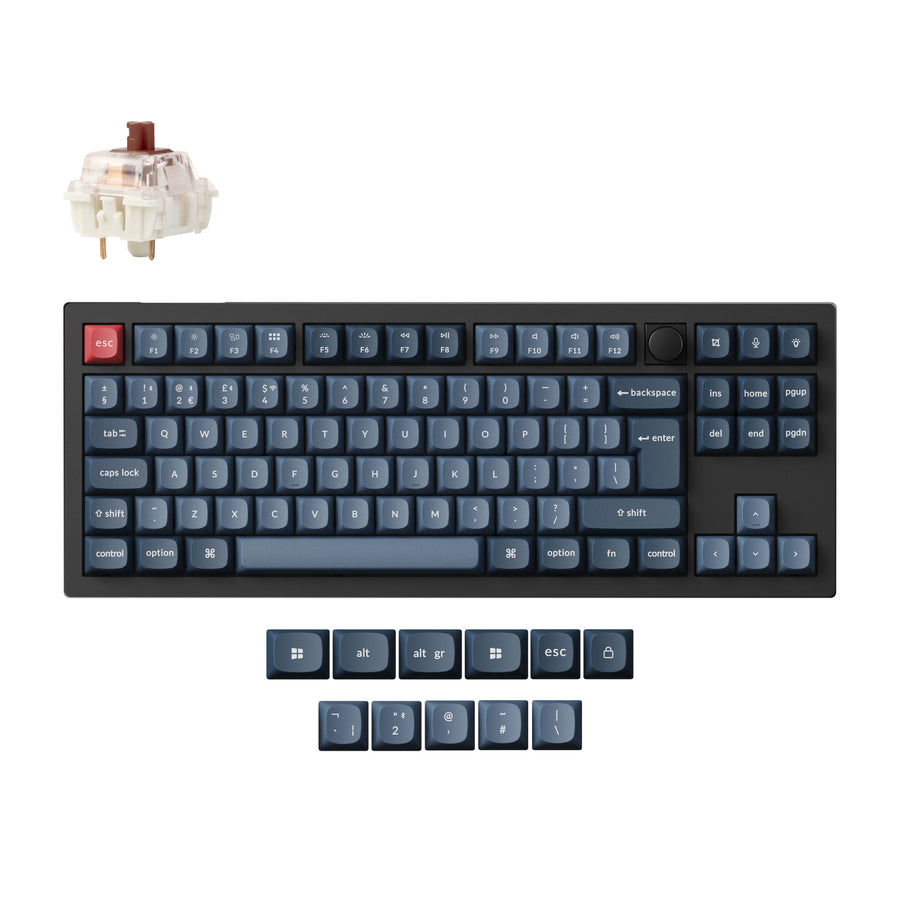

🇬🇧 UK-ISO Layout (PBT)

keychron-v3-max-qmk-wireless-custom-mechanical-keyboard-tkl-uk-iso-layout-fully-assembled-knob-for-mac-windows-linux

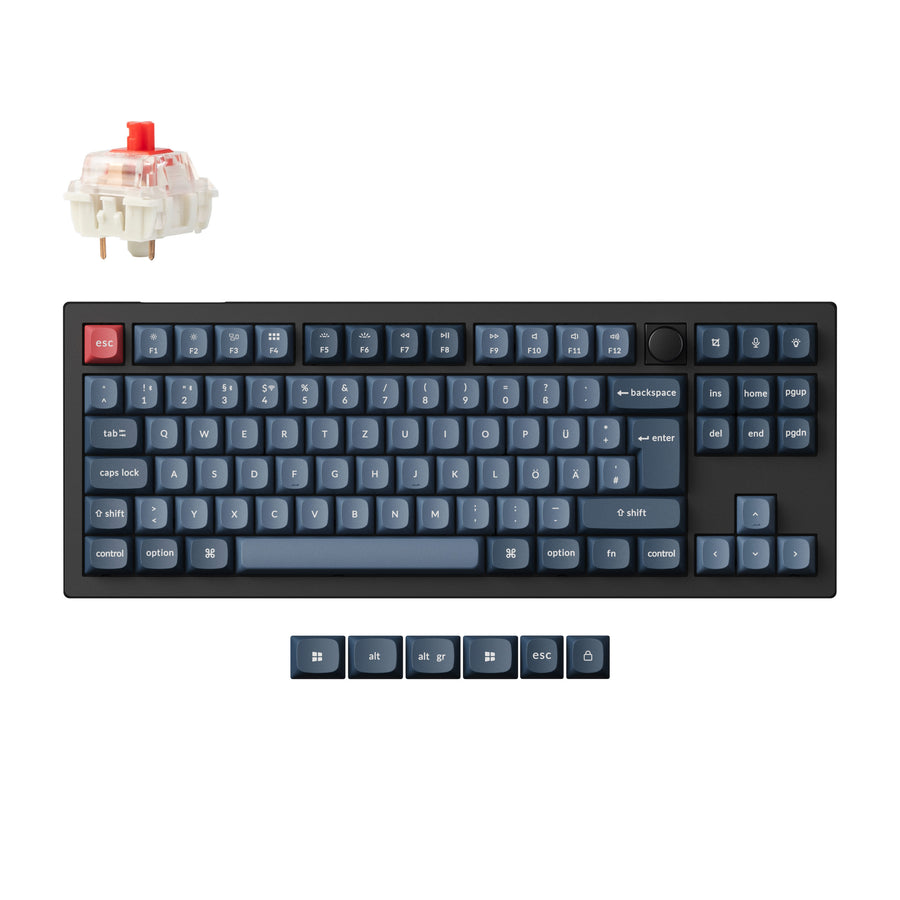

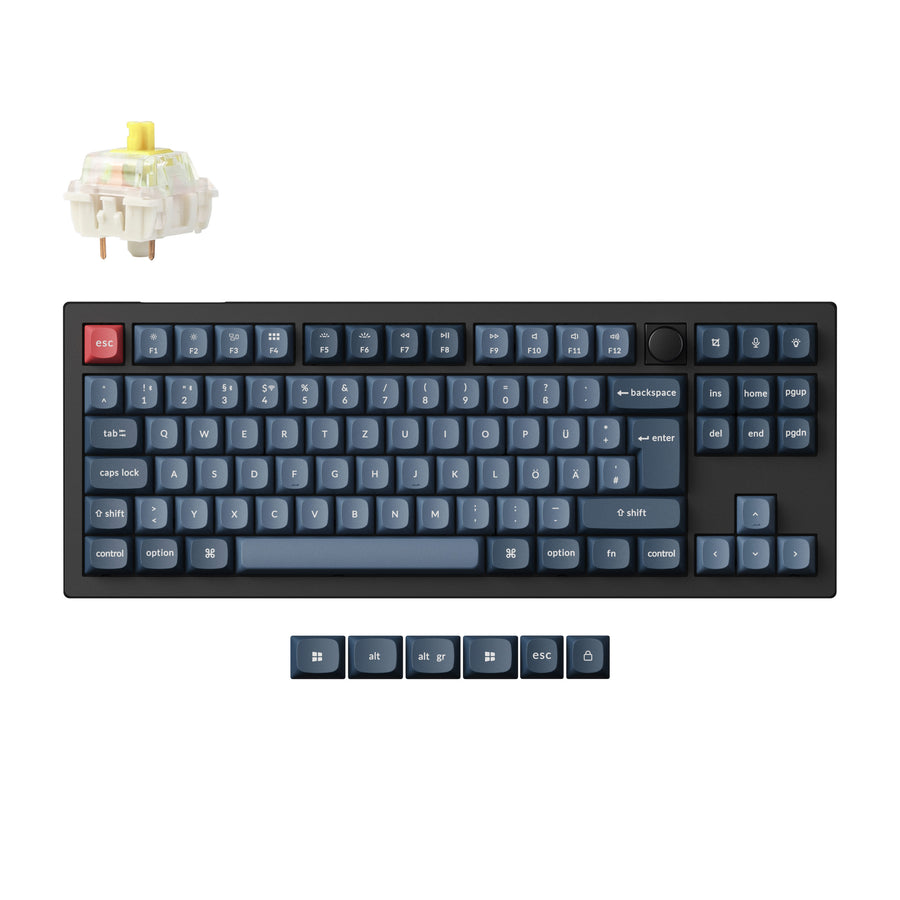

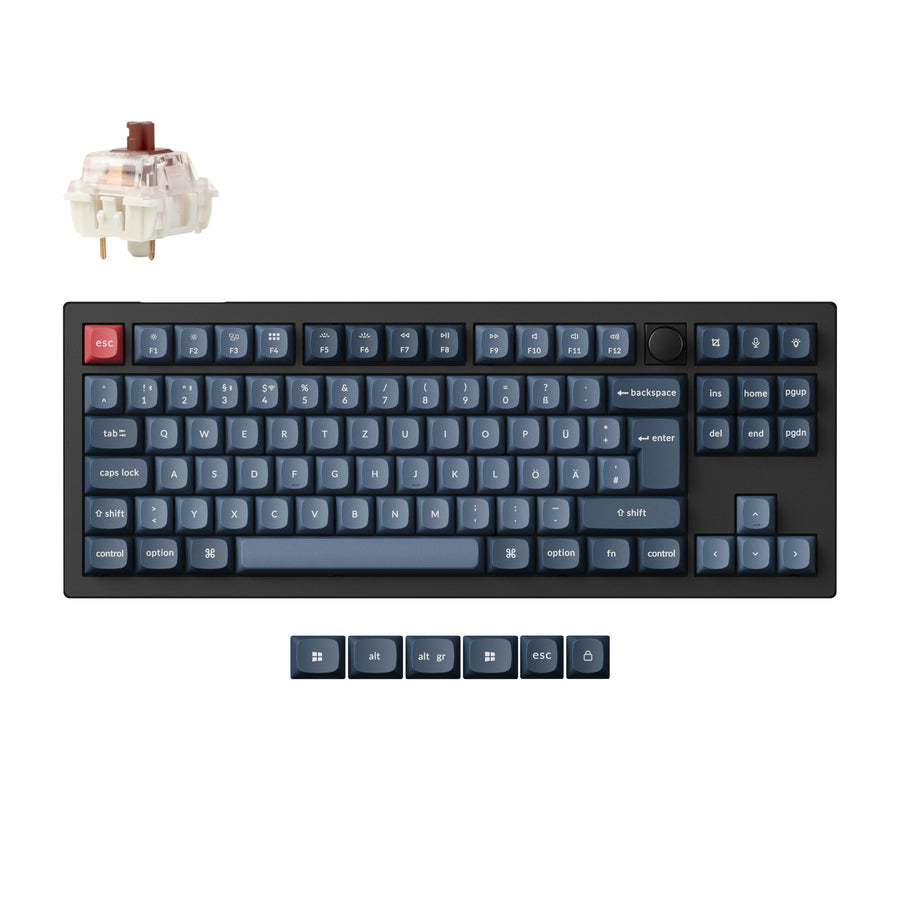

🇩🇪 DE-ISO Layout (PBT)

keychron-v3-max-qmk-wireless-custom-mechanical-keyboard-tkl-german-iso-layout-fully-assembled-knob-for-mac-windows

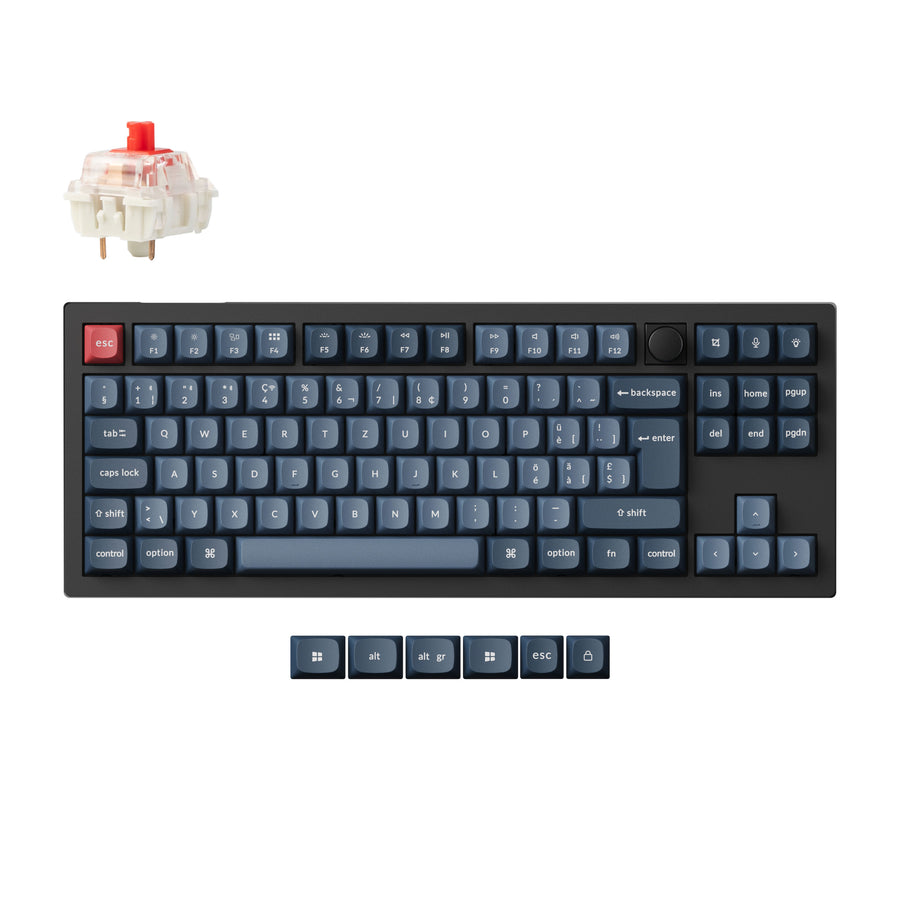

🇨🇭 Swiss-ISO Layout (PBT)

keychron-v3-max-qmk-wireless-custom-mechanical-keyboard-tkl-swiss-iso-layout-fully-assembled-knob-for-mac-windows-linux

🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout (PBT)

keychron-v3-max-qmk-wireless-custom-mechanical-keyboard-tkl-nordic-iso-layout-fully-assembled-knob-for-mac-windows-linux

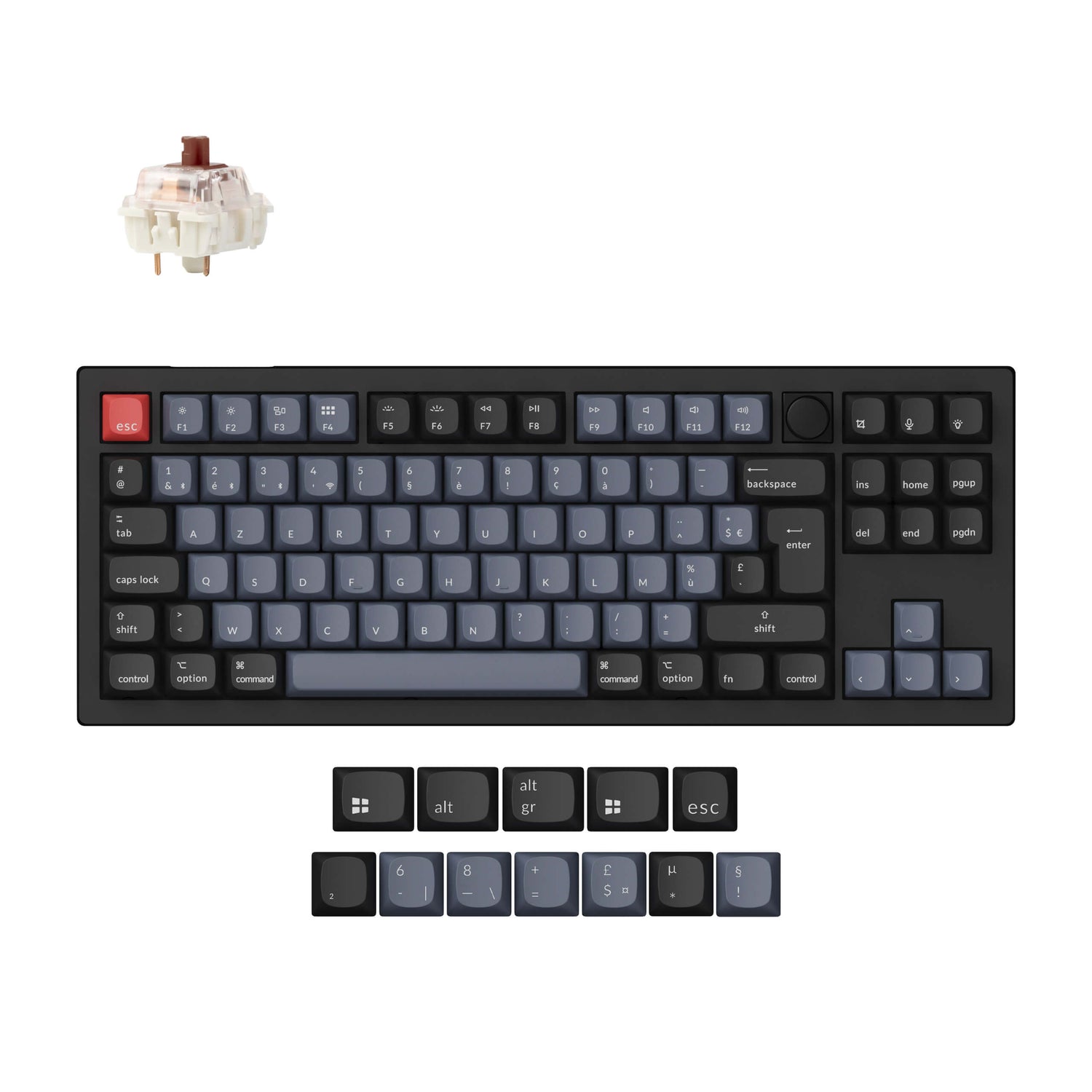

🇫🇷 French-ISO Layout (ABS)

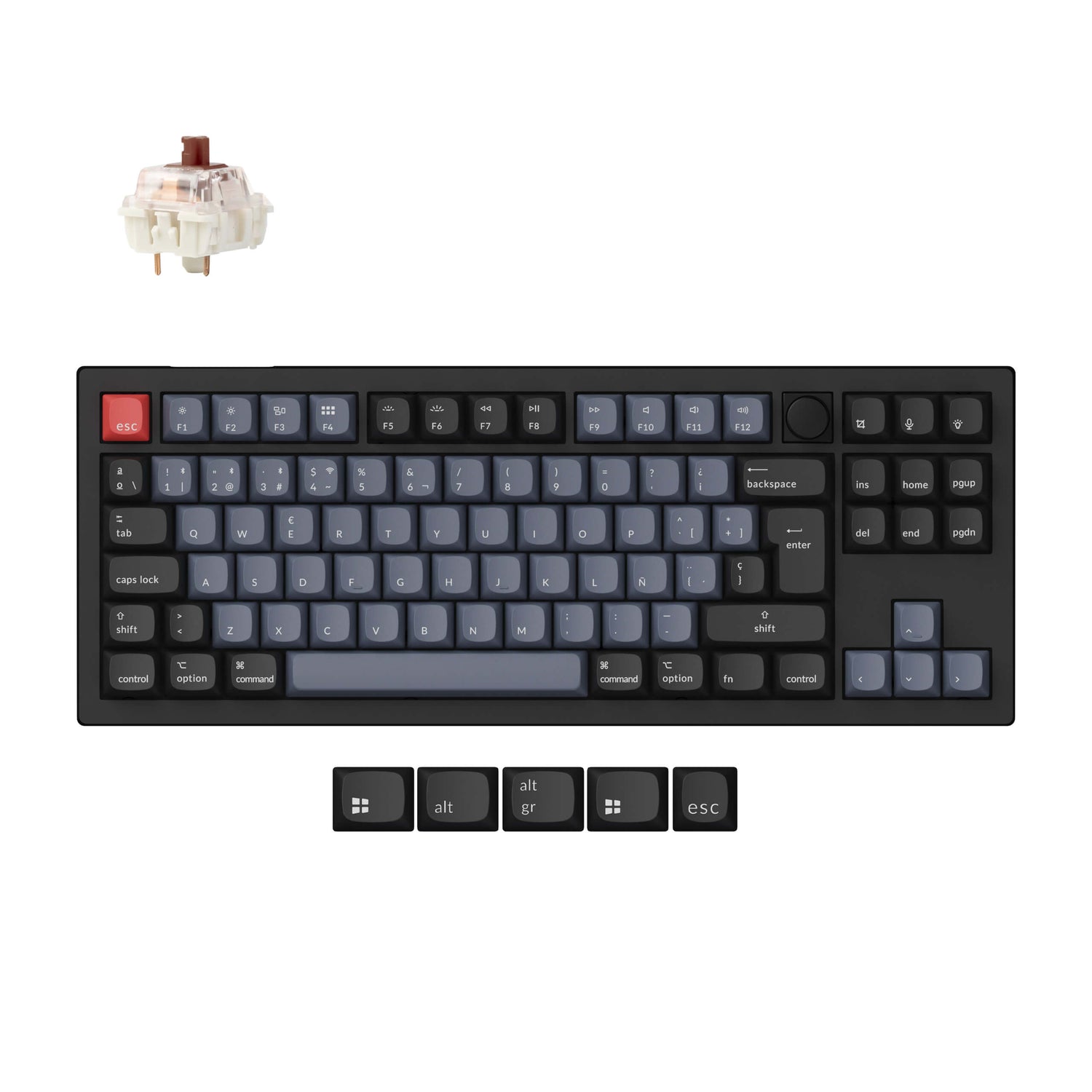

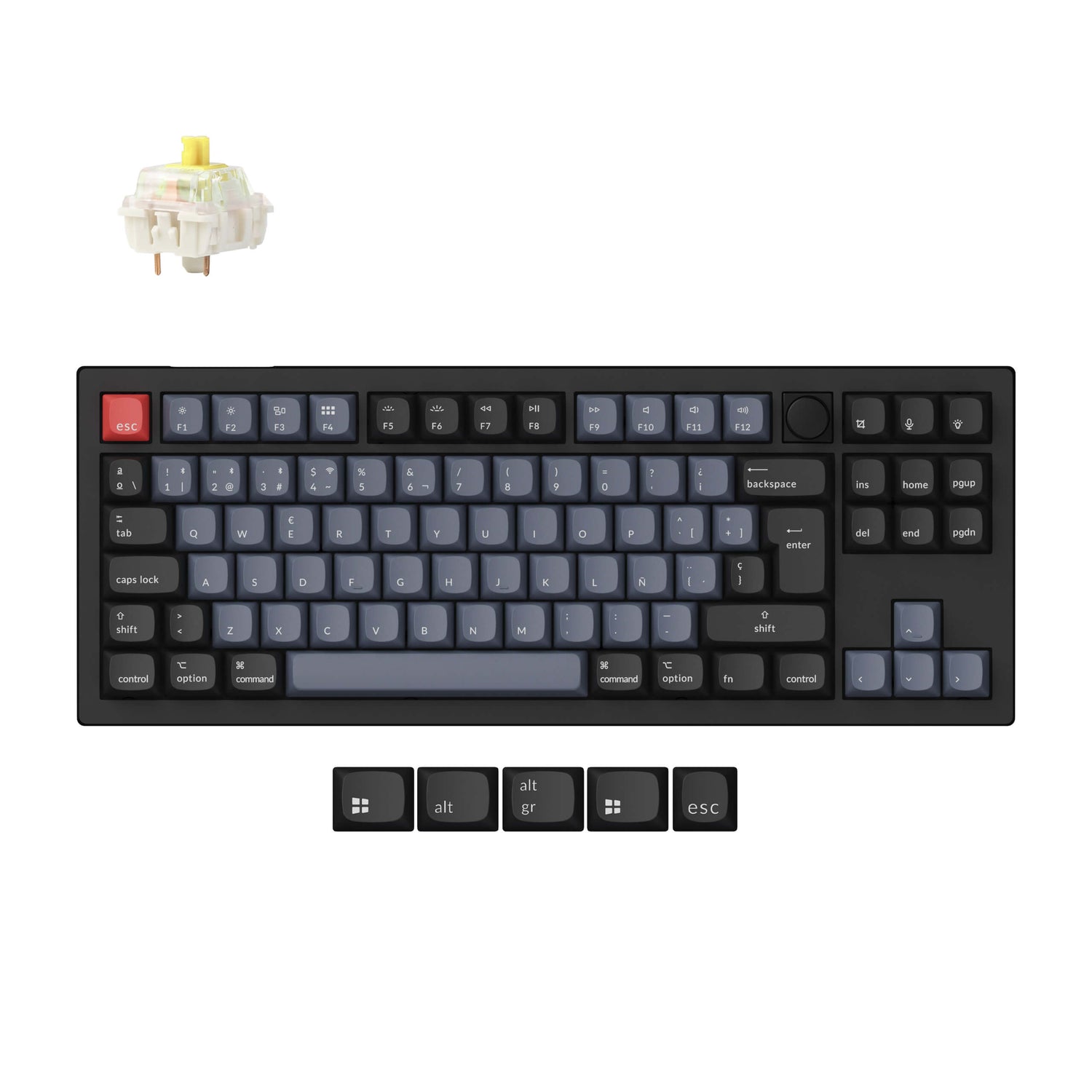

🇪🇸 Spanish-ISO Layout (ABS)


All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

structure-of-keychron-v3-max-24g-wireless-qmk-mechanical-keyboard-iso-layout
Structure of Keychron V1 Max QMK/VIA Wireless Custom Keyboard 75% ISO Layout

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V3 Max via Bluetooth 5.1 to three devices.

keychron-v3-max-iso-layout-2

Dual Receivers

For a better 2.4 GHz wireless experience, the V3 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

Wireless Receiver
magnetic-storage-slot-for-receivers-on-the-v3-max-keyboard
keychron-v3-max-iso-layout

An Epic Core Inside The Keyboard

A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V3 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

v3-max-iso-system-toggle

Gasket Mount Design

By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V3 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.

v1_max_gasket_mount__PID:38d5ef81-8bb0-49a2-aeb5-1d6bd86b09bf
launcher

Program with QMK & Launcher.

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

v3-max-iso-launcherClick here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

hot-swappable-feature-of-the-v3-max-iso-layout-wireless-keyboard

Hot-Swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Gateron Jupiter switch features
screw-in pcb stabilizers

Screw-In PCB Stabilizers

Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V3 Max also supports third-party screw-in PCB stabilizers.

What's in the box?

package_list_of_keychron_v3_max_custom_mechanical_keyboard_iso_layout

Specs

Width149 mm
Length367.8 mm
Front Heigh23.6 mm (without keycaps)
Back Height32.5 mm (without keycaps)
Feet Height2 mm
Angle4° / 7° / 10°
Weight895 ± 10 g (Fully Assembled Version)
Body MaterialABS Plastic
Plate MaterialPC
Polling Rate1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Backlight 22 types of RGB backlight options plus endless possibilities
SwitchGateron Jupiter (Fully Assembled version)
StabilizerScrew-in PCB stabilizer
BacklightSouth-facing RGB LED
Hot-swappableYes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
MCUARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Switch SupportHot-swappable (5 pin & 3 pin)
N-Key Rollover (NKRO)Yes for both wireless and wired modes
Operating Environment-10 to 50℃
Keycaps (Fully Assembled Version)OSA backlight shine-through ABS keycaps / OSA double-shot PBT keycaps
Battery4000 mAh Rechargeable li-polymer battery
Wireless Working Time (Backlit off) Up to 225 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB) Up to 100 hours (Lowest brightness)
Bluetooth Version5.1
Compatible SystemmacOS/Windows/Linux
Connectivity2.4 GHz/Bluetooth/ Type-C wired
Bluetooth Device NameKeychron V3 Max
CableType-C cable + Type-A to Type-C adapter
Charging TimeAround 5 hours
Cable Length 1.8 m
Charging Port USB type-C

Learn more about the Keychron V3 Max such as the V3 Max shortcuts, assembling the V3 Max, factory reset, and more in the FAQ section.
